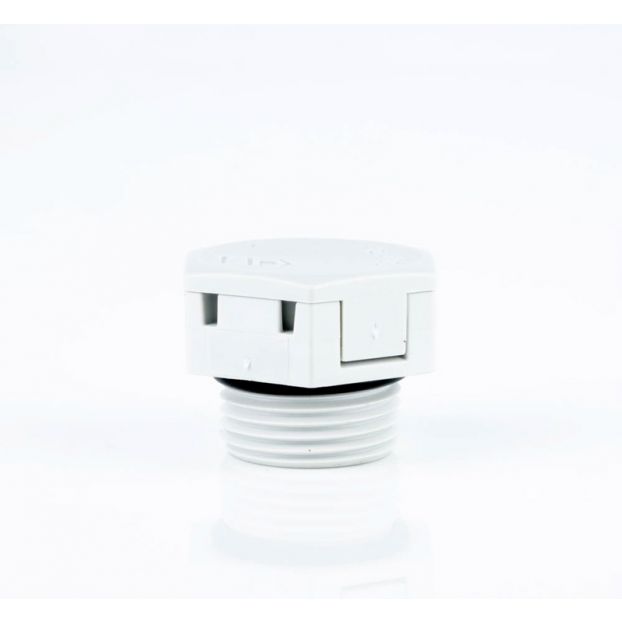

Jacob - Plastic venting elements - Metric - M20x1,5 - Light gray - 10 pieces
€ 39.80 Excl. VAT
Stock (pcs.): Backorder
Jacob venting elements made of plastic (polyamide PA6 V-0), also called condensation plugs. With metric thread. Perfectly suited for protecting closed electronic housing against condensation when temperature and pressure changes occur. Ensure continuous ventilation and adjustment of the internal pressure through the PES membrane.
| Art.no. | JDAE20PA7035 |
|---|---|
| Brand | Jacob |
| Material | Plastic |
| Material quality | Polyamide PA6 V-0 |
| Color | Light grey (7035) |
| Connecting thread | M20x1.5 |
| Thread length (mm) | 10 |
| Size | M20x1.5 |
| Height in mm | 21.6 |
| Connecting thread type | Metric (EN 60423) |
| Typical air flow | > 400 ml / min / cm2 at Δp = 0,07 bar |
| Water entry pressure | ≥ 0.83 bar (dynamic WEP, 30 seconds) |
| Temperature range (°C) | -40 up to +100 |
| Degree of protection (IP rating) | IP66 / IP68 – 0,6 bar (60 min.) / IP69K |
| Properties | Protection for hermetically sealed electro-technical and electronic enclosures against condensation water from alternating temperature and pressure. Continuous ventilation and adaption of the inner pressure. Hydrophobic and oleophobic PES-membrane. |
| Comment | For the selection of the correct blanking plug, Da1 may be 1 mm smaller (max.) than Ø Cmax. |
| PU (pcs.) | 10 |
| PU / Master Carton | 120 |
