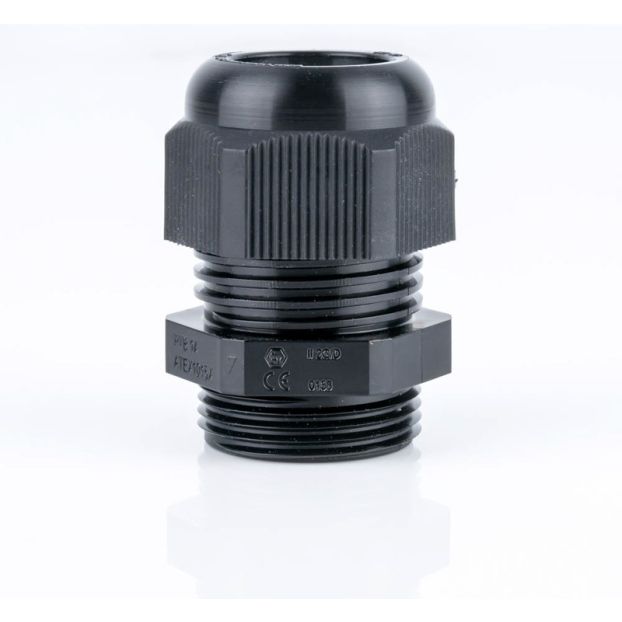

Jacob - Plastic Ex cable glands - Metric - IP66 - M63x1,5 - 16mm - Black - 5 pieces
€ 140.34 Excl. VAT
Stock (pcs.): Backorder
These plastic Ex Jacob cable gland ensures a secure and reliable sealing of the housing, next to the secure fixation of the cable. Therefore, the housing is protected against environmental influences. With metric thread. Available in black (RAL 9005) and blue (RAL 5015).
| Art.no. | GHG9601955R0028 |
|---|---|
| Brand | Jacob |
| Material | Plastic |
| Material quality | Polyamide PA6 |
| Color | Black |
| Connecting thread | M63x1.5 |
| Cable diameter (mm) | 29 - 48 |
| Thread length (mm) | 16 |
| Height in mm | 69.5 |
| Connecting thread type | Metric (EN 60423) |
| Ex-version | Yes |
| EMC-version | No |
| Category / Zone | II 2G (1, 2), II 2D (21, 22) |
| Type of protection | Ex e IIC Gb, Ex tb IIIC Db |
| Temperature range (°C) | -55 up to +70 |
| Flammability class | Not flammable |
| With strain relief | Yes |
| Halogen-free | Yes |
| Degree of protection (IP rating) | IP66 |
| EC-type certificate | PTB 99 ATEX 3101 X (M12 x 1,5 – M16 x 1,5) PTB 99 ATEX 3128 X (M20 x 1,5 – M63 x 1,5) PTB 14 ATEX 1015 X |
| IECEx certificate | IECEx PTB 05.0004X, IECEx PTB 14.0027X |
| Wrench width in mm | 68 |
| PU (pcs.) | 5 |
