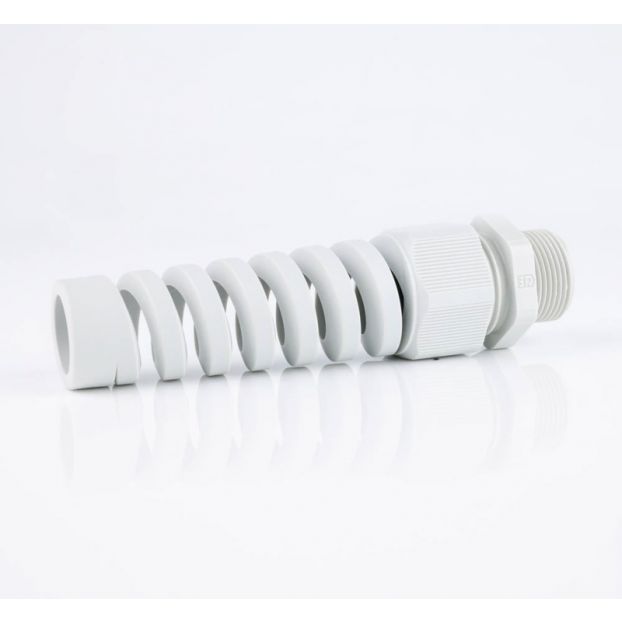

Jacob - Plastic cable glands with spiral top - Metric - IP68 - M16x1,5 - 15mm - Lichtgrijs - 100 pieces
€ 91.63 Excl. VAT
Stock (pcs.): 1
Jacob plastic cable glands with spiral top are perfectly suited for flexible, moveable cable, due to the spiral on the top of the cable gland. Easy to install, with twist protection, contains integrated anchoring and with a large sealing range. With metric thread.
| Art.no. | 50011M16BS7035 |
|---|---|
| Brand | Jacob |
| Material | Plastic |
| Material quality | Polyamide PA6 |
| Color | Light grey (7035) |
| Connecting thread | M16x1.5 |
| Cable diameter (mm) | 5 - 10 |
| Thread length (mm) | 15 |
| Height in mm | 94.5 |
| Connecting thread type | Metric (EN 60423) |
| Ex-version | No |
| EMC-version | No |
| Temperature range (°C) | -20 up to +100 |
| Flammability class | UL 94 V-2 |
| With strain relief | Yes |
| Halogen-free | No |
| Degree of protection (IP rating) | IP68 |
| Approvals | UL 514B |
| Wrench width in mm | 22 |
| UL/CSA-File | E140310 |
| PU (pcs.) | 100 |
| PU / Master Carton | 7 |
