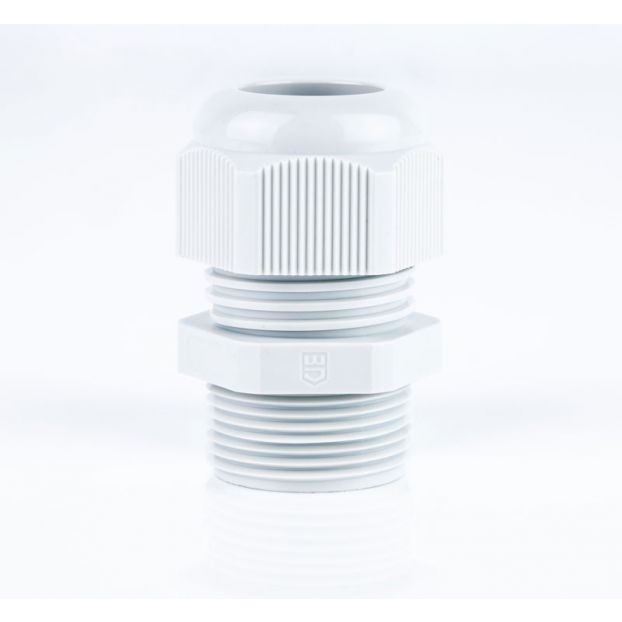

Jacob - Plastic cable glands - Metric - IP68 - M20x1,5 - 15mm - Light gray - 100 pieces
Stock (pcs.): 34
A cable gland ensures that a cable running to a junction box is attached safely and securely. Our plastic cable glands are used for general purposes, in environments where extreme conditions do not occur. Available in three colors and with thread lengths of 15 and 18 millimeters. Metric.
| Art.no. | 50.620 PA7035L |
|---|---|
| Brand | Jacob |
| Material | Plastic |
| Material quality | Polyamide PA6 V-2 |
| Color | Light grey (7035) |
| Connecting thread | M20x1.5 |
| Cable diameter (mm) | 8 - 13 |
| Thread length (mm) | 15 |
| Height in mm | 43 |
| Connecting thread type | Metric (EN 60423) |
| Ex-version | No |
| EMC-version | No |
| Temperature range (°C) | -20 up to +100 |
| Flammability class | UL 94 V-2 |
| With strain relief | Yes |
| Shock resistant | Yes |
| Halogen-free | No |
| Degree of protection (IP rating) | IP68 |
| Approvals | EN 62444 / UL 514B |
| Water resistance in bar | 5 |
| Wrench width in mm | 24 |
| UL/CSA-File | E140310 |
| Other information | Also available in thread lengths of 15.0 and 18.0 mm. From M32 available with sealing ring |
| PU (pcs.) | 100 |
| PU / Master Carton | 10 |
