Jacob - Brass EMC cable glands - Metric - IP68 or IP69K

Request a quote

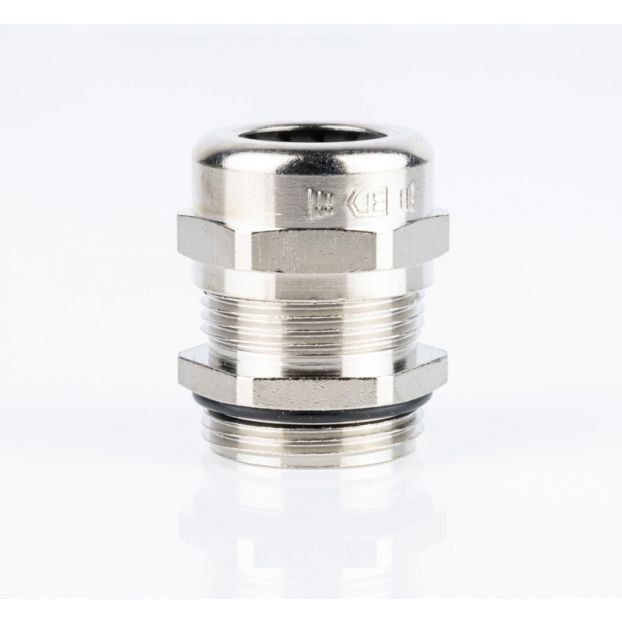

Using these EMC brass Jacob cable glands, cables can be sealed in compliance with EMC requirements. These cable glands comply with the strict requirements of the UL certification, making them suited for use around the globe. Nickel-plated. With metric thread.
View versions and order
main product photo

Versions

Grouped product items
Quantity Art.no. Connecting thread Cable diameter (mm) Thread length (mm) PU (pcs.) PU / Master Carton Price excl. VAT Stock (pcs.)
50.612 M/EMV M12x1.5 3 - 6 5 100 15
Request a quote 		2
50.616 M/EMV M16x1.5 5 - 9 5 100 10
Request a quote 		3
50.620 M/EMV M20x1.5 9 - 13 6 100 5
Request a quote 		Backorder
50.625 M/EMV M25x1.5 11 - 16 7 50 5
Request a quote 		8
50.632 M/EMV M32x1.5 14 - 21 8 25 6
Request a quote 		2
50.640 M/EMV M40x1.5 19 - 27 8 10 10
Request a quote 		2
50.650 M/EMV M50x1.5 24 - 35 9 5 10
Request a quote 		Backorder
50.663 M/EMV M63x1.5 32 - 42 10 5 6
Request a quote 		2
50.663 M1/EMV M63-1x1.5 38 - 48 10 5 6
Request a quote 		1
50.612M/EMV/L M12x1.5 3 - 6 10 100 15
Request a quote 		Backorder
50.616M/EMV/L M16x1.5 5 - 9 10 100 8
Request a quote 		1
50.620M/EMV/L M20x1.5 9 - 13 10 100 5
Request a quote 		2
50.625M/EMV/L M25x1.5 11 - 16 11 50 5
Request a quote 		Backorder
50.632M/EMV/L M32x1.5 14 - 21 13 25 6
Request a quote 		Backorder
50.640M/EMV/L M40x1.5 19 - 27 13 10 10
Request a quote 		Backorder
Page
More Information
Brand Jacob
Material Metal
Material quality Brass (CuZn39Pb3)
Color Silver
Height in mm 2.8
Connecting thread type Metric (EN 60423)
Ex-version No
EMC-version Yes
Temperature range (°C) -20 up to +100
Flammability class Not flammable
With strain relief Yes
Halogen-free No
Approvals EN 62444 / UL 514B
UL/CSA-File E140310
Other information Also available in thread lengths of 10.0 / 11.0 / 13.0 and 14.0 mm. From M50 available with O-ring
