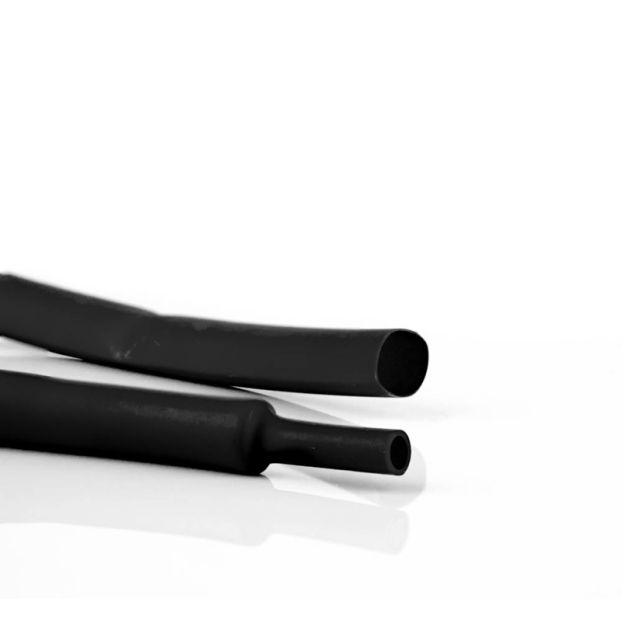

WKK - H-5(3X)-F - Thin-wall heat shrink tubing - 3:1 - With adhesive - Operating temperature up to 125 °C - 24.0/8.0 - Black - Length piece - 1.22 meter
Stock (pcs.): 421
| Art.no. | 2212161504 UL |
|---|---|
| Brand | WKK |
| Heat shrink tubing model | Thin-wall (flexible) heat shrink tubing |
| Heat shrink tubing type | H-5(3X)-F |
| Shrink ratio | 3:1 |
| Color | Black |
| As supplied: inner diameter in mm (min.) | 24.0 |
| After recovery: inner diameter in mm (max.) | 8 |
| Operating temperature (°C) | -55 up to +125 |
| Minimum shrink temperature (°C) | +70 |
| Minimum full recovery temperature (°C) | +110 |
| Longitudinal change | 0 up to 10% max. |
| UL / CSA approval | UL224 & CSA, file E204071 (only black) |
| MIL-SPEC | Yes |
| Halogen-free | No |
| Master contract | 240199 |
| Properties | Excellent electrical properties and creeping resistance / Flame retardant and self-extinguishing in 60 seconds / Up to 36 kV |
