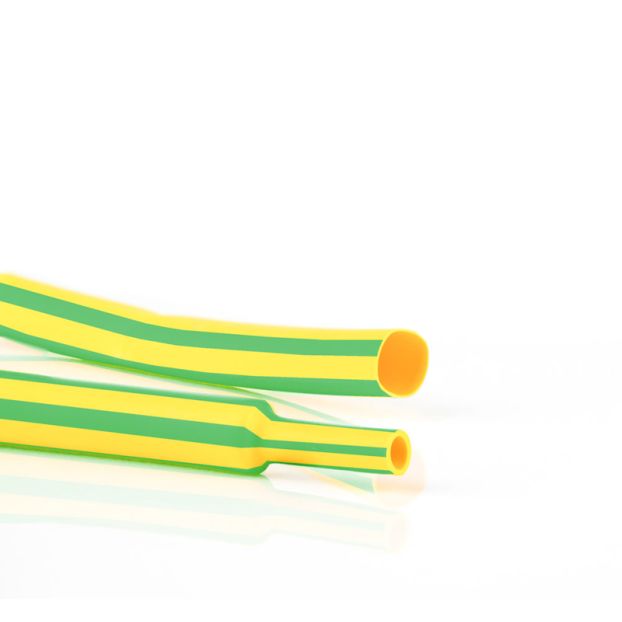

WKK - H-2F(Y/G) - Thin-wall heat shrink tubing - 2:1 - Yellow/green - Operating temperature up to 135 °C - 3.2/ 1.6 - Length piece - 1.22 meter
Stock (pcs.): 1163
| Art.no. | 2181415101 |
|---|---|
| Brand | WKK |
| Heat shrink tubing model | Thin-wall (flexible) heat shrink tubing |
| Heat shrink tubing type | H-2F(Y/G) |
| Shrink ratio | 2:1 |
| Color | Yellow / Green |
| As supplied: inner diameter in mm (min.) | 2.4 |
| After recovery: inner diameter in mm (max.) | 1.2 |
| Operating temperature (°C) | -55 up to +135 |
| Minimum shrink temperature (°C) | +70 |
| Minimum full recovery temperature (°C) | +100 |
| Longitudinal change | 0 up to 10% max. |
| UL / CSA approval | UL224 & CSA, file E204071 |
| MIL-SPEC | Yes |
| UV resistant | No |
| Halogen-free | No |
| Master contract | 240199 |
| Properties | Excellent electrical properties and creeping resistance / Flame retardant and self-extinguishing in 60 seconds / Up to 36 kV |
